Tractor PTO 30kw Generator Set

规格参数Specification parameters

发电机型号    PTO-12000                                Generator Model    PTO-12000

额定连续功率    12000瓦                                  Rated Cont. Wattage    12,000 watts

最高功率    16000瓦                                         Max. Wattage    16,000 watts

功率因数    1                                                     Power Factor    1

额定交流电压    120/240                                   Rated AC Volts    120/240

额定负载电流    125/62.5安培                           Rated Load Current    125/62.5 amps

相位    1相                                                         Phase    1-phase

额定频率    60 Hz.                                             Rated Frequency    60 Hz.

所需功率    25马力或更多                                  Power Needed    25 Hp or more

PTO驱动器速度    540转/分                               PTO Drive Speed    540 RPM

PTO轴    1-3/8英寸样条曲线，6样条曲线          PTO Shaft    1-3/8" spline, 6-spline

齿轮箱减速    单级                                             Gearbox Reduction    single stage

PTO轴与旋转场速度的比率    1至6.67               Ratio PTO Shaft to Revolving Field Speed    1 to 6.67

推荐的齿轮箱油    SAE90齿轮油                        Recommended Gear Box Oil    SAE 90 Gearlube Oil

PTO轴润滑剂    锂基润滑脂                               PTO Shaft Lubricant    Lithium base grease

长度    26英寸(660毫米)                                     Length    26 inches(660mm)

宽度    23.6英寸(600毫来)                                  width    23.6 inches (600mm)

高度    31.5英寸(800毫米)                                  Height    31.5 inches (800mm)

重量    285 Ibs.(128kg)                                       Weight    285 lbs.(128kg)

✪Product Introduction

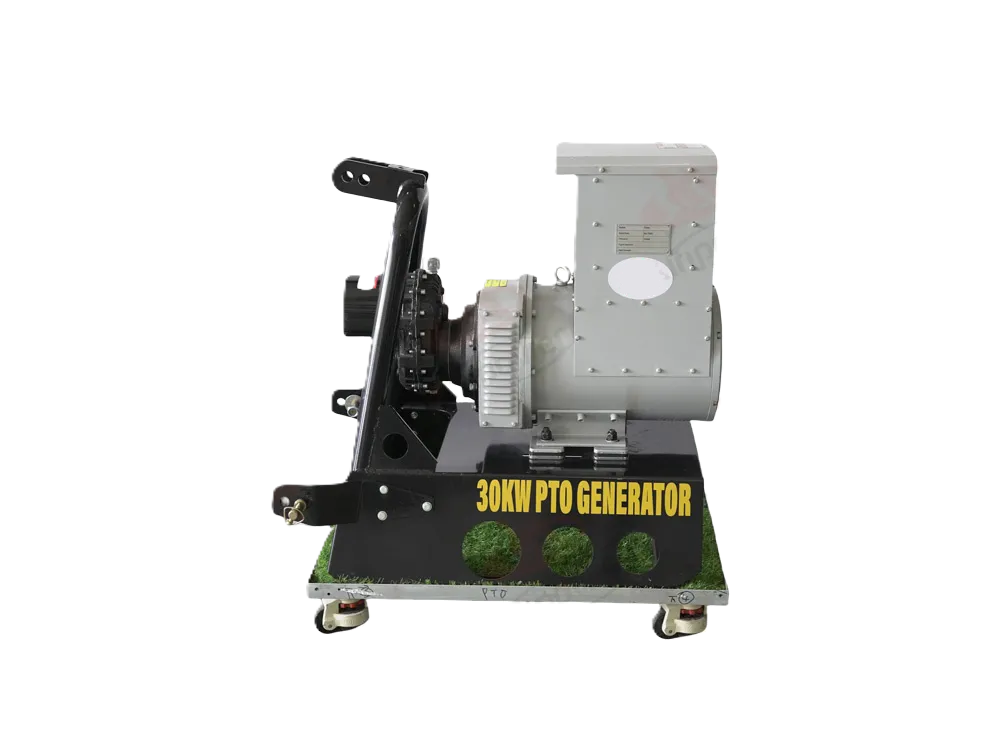

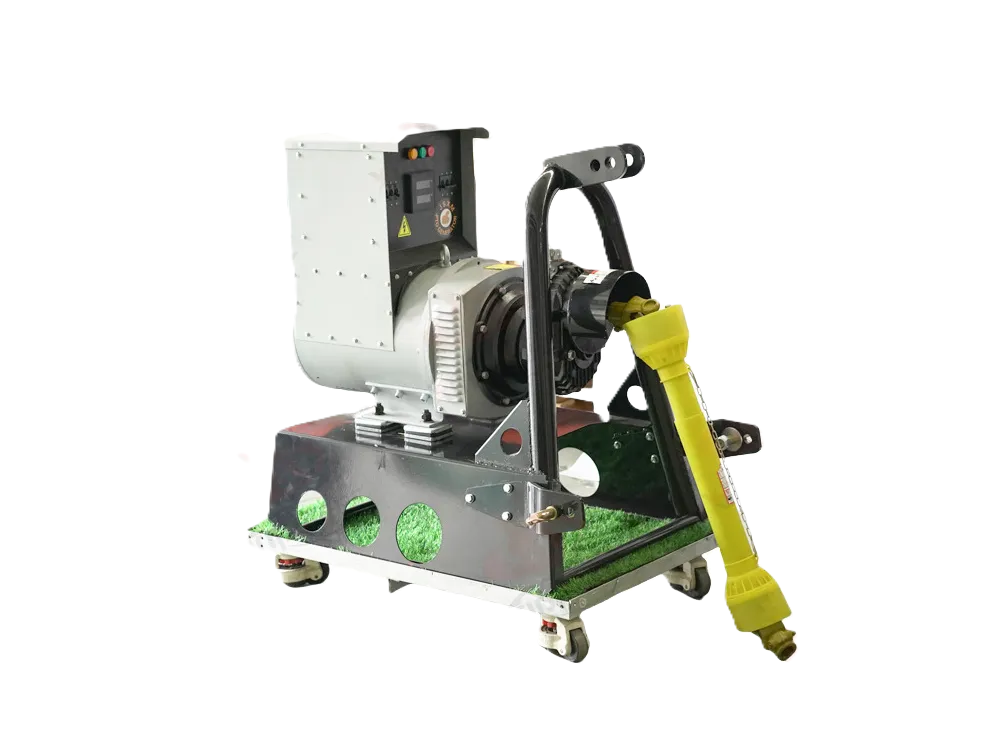

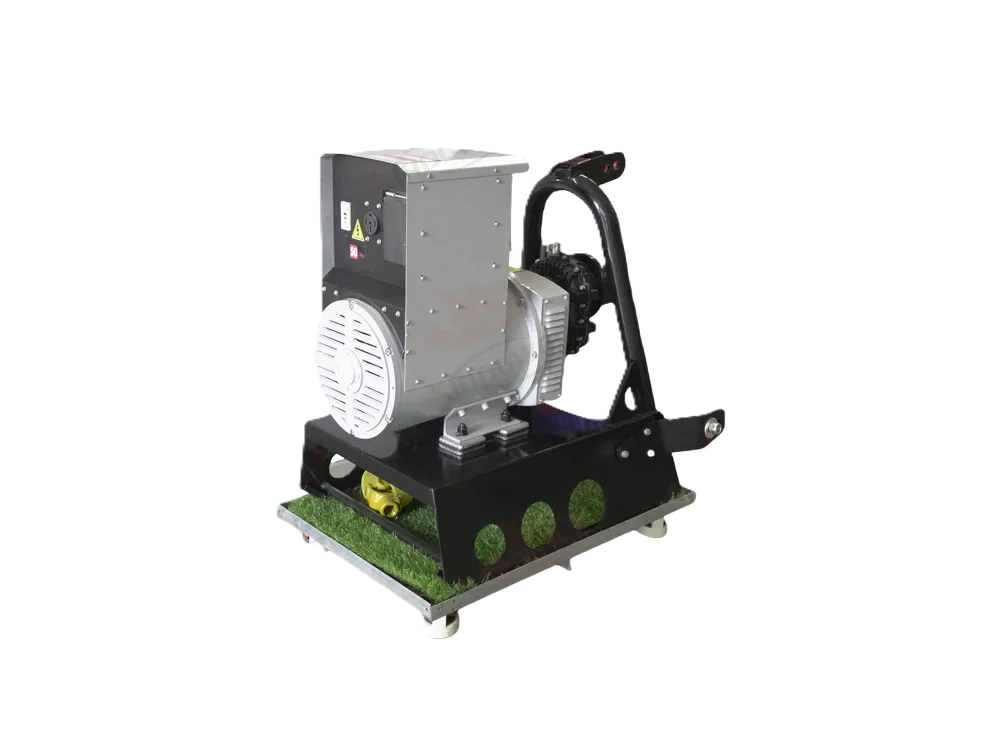

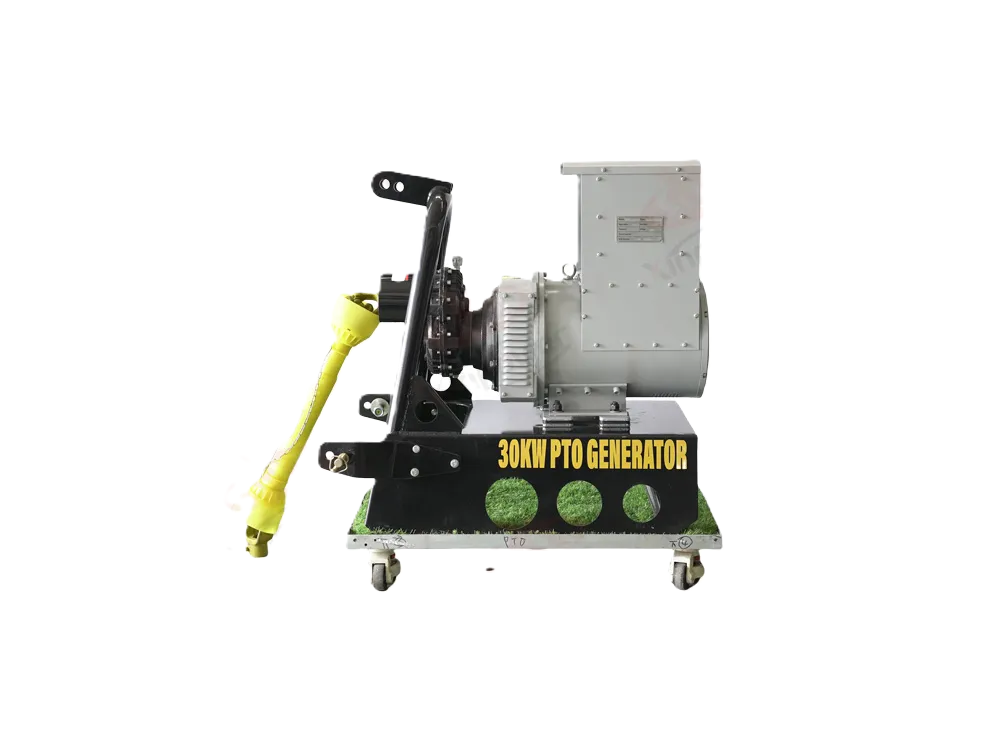

The tractor PTO 30KW Generator Set is a power generation device driven by the tractor PTO (power output shaft). The generator set converts the power of the tractor into electricity and is widely used in agriculture, construction, rural areas and other places where there is a lack of stable power supply. The power of 30KW can meet the power needs of ordinary households, farmland irrigation, on-site construction sites and small industrial equipment.
The Tractor Pto Generator Set is connected to the PTO shaft of the tractor and uses the engine power of the tractor to drive the operation of the generator set to provide efficient and reliable power output. This system is suitable for applications in areas with difficult or remote areas where grid access is difficult, especially in emergency situations, it can provide important power guarantees.
✪Advantages
Powerful
Large reserve torque, strong power, and inherent super overload capacity.
Low noise
The well-designed gear transmission structure can greatly reduce vibration and noise
Safe and reliable
Exquisite craftsmanship and strict quality concept ensure product safety and reliability.
Powerful
Compact structure, large displacement, strong power
Low noise
Well-designed gear transmission structure can greatly reduce vibration and noise
